- - TIG (GTAW) – Wire Diameter: 1.60, 2.00, 2.40 & 3.20mm. Length: 1000mm. Packing: 5 Kg

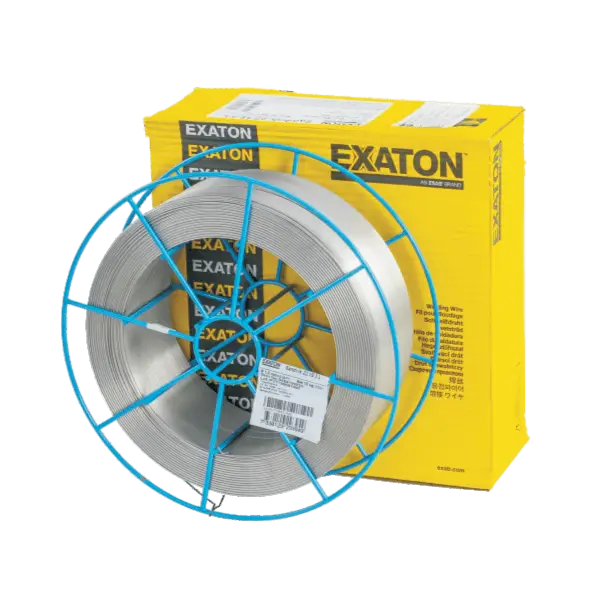

- - MIG (GMAW) – Wire Diameter: 0.8, 1.2 & 1.60mm. Basket Spool, BS 300. Packing: 15 Kg
- - SAW – Wire Diameter: 2.00, 2.40, 3.20mm & 4.00mm. Basket Rim. Packing: 25 Kg
- - SMAW (MMA / Covered Electrode) – 2.50, 3.20, 4.00 & 5.00mm. Vacuum Packed. Packing: Varies as per Diameter of Electrode
EXATON WELDING CONSUMABLES
| Stailness Grades | Exaton Grade | AWS | EN 14343 | ISO | MIG TIG & (SAW) | STRIP ELECTRODE | SAW & ESW | MMA | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Solid Wire | ER | G/W/P/Sb | Nr. | Exaton | Exaton | AWS | Exaton FLUX | Exaton | AWS | EN | |
| 19.9.LSi | 308LSi | 19 9 L Si | 1.4316 | 19.9.LSi | - | - | - | - | - | - | |
| 19.9.Nb | 347 | 19 9 Nb | 1.4551 | 19.9.Nb | 19.9.LNb | EQ347 | 15W 47S 49S 10SW | 19.9.NbR | E347-17 | E 19 9 Nb R | |
| 19.9.L | 19.9.L | 19.9 L | 1.4316 | 19.9.L | - | - | 15W | - | - | - | |
| 19.12.3.L | 316L | 19 12 3 L | 1.4430 | 19.12.3.L | 19.12.3.L | EQ316 | 15W 47S 49S 10SW | 19.12.3.LR | E316L-17 | E 19 12 3 L R | |
| 19.12.3.LB | E316L-15 | E 19 12 3 L B | |||||||||
| 19.12.3.LSi Mo | 316LSi | 19 12 3 Lsi | 1.4430 | 19.12.3.LSi MO | - | - | - | - | - | - | |
| 19.12.3.LSi | 316LSi | 19 12 3 L Si | 1.4430 | 19.12.3.LCRYO | - | - | - | - | - | - | |
| 19.12.3.LCRYO | 316L | 19 12 3 L | 1.4430 | 19.12.3 LCRYO | - | - | 15W | - | - | - | |
| 19.13.4.L | 317L | 19 13 4 L | (1.4438) | 19.13.4.L | 19.13.4.L | EQ317L | 47S 49S 10SW | - | - | - | |
| 18.8.Mn | (307) | 18 8 Mn Si | 1.4370 | 18.8.Mn | - | - | - | - | - | - | |
| 24.13.L | 309L | 23 12 L | 1.4332 | 24.13.L | 24.13.L | EQ309L | 15W 49S 10SW | 24.13.LR | E309/309 L-17 | E 23 12 L R | |
| 24.13.LNb | EQ"309LNb" | ||||||||||
| 24.13.LSi | 309LSi | 23 12 L Si | 1.4332 | 24.13.LSi | - | - | - | - | - | - | |
| 24.13.LHF | 309L | 23 12 L | 1.4332 | 24.13.LHF | 22.11.L | EQ(309L) | 15W 47S 49S | - | - | - | |
| 24.13.LNb | ”309LNb” | 23 12 Nb | 1.4332 | 24.13.LNb | 21.11.LNb | EQ"309LNb" | 15W 47S 49S | - | - | - | |
| 21.11.LNb | EQ"309LNb" | 49S 10SW | |||||||||
| 22.15.3.L | (309LMo) | 23 12 2 L | 1.4459 | 22.15.3.L | 21.13.3.L | EQ(309LMo) | 15W 47S 10SW | 23.12.2.LR | E309LMo-17 | E 23 12 2 L R | |
| Duplex Family | 22.8.3.L | 2209 | 22 9 3 N L | 1.4462 | 22.8.3.L | 22.8.3.L | EQ2209 | 15W 10SW 47S | 22.9.3.LR | E2209-17 | E 22 9 3 N L R |
| 22.9.3.LB | E2209-15 | E 22 9 3 N L B | |||||||||
| 22.8.3.LSi | 2209 | 22 9 3 N L Si | 1.4462 | 22.8.3.LSi | - | - | - | - | - | - | |
| 25.10.4.L | 2594 | 25 9 4 N L | (1.4410) | 25.10.4.L | 25.10.4.L | EQ2594 | 15W 47S | 25.10.4.LR | E2594-16 | E 25 9 4 N L R | |
| 25.10.4.LB | E2594-15 | E 25 9 4 N L B | |||||||||
| 27.7.5.L | - | - | - | 27.7.5.L | - | - | - | - | - | - | |
| 29.8.2.L | UNS: S32906 | - | - | 29.8.2.L | 29.8.2.L | - | 47S | - | - | - | |
| Special Grades | SAFUREX | Safurex is a registered trade name of stamicarbon safurex | SAFUREX | SAFUREX | - | 47S | - | - | - | ||
| 22.12.HT | - | - | 1.4829 | 22.12.HT | - | - | 15W | 22.12.HTR | - | - | |
| 25.20.L | "310L" | - | 1.4842 | 25.20.L | - | - | - | - | - | - | |
| SX | - | - | - | SX | - | - | - | - | - | - | |
| 25.22.2.LMn | "310LMo" | 25 22 2 N L | (1.4466) | 25.22.2.LMn | 25.22.2.LMn | EQ"310LMo" | 31S 37S 47S | 25.22.2.LMnB | E(310LMo-15) | E 25 22 2 N L B | |
| 20.25.5.LCu | 385 | 20 25 5 Cu L | 1.4519 | 20.25.5LCu | 20.25.5LCu | EQ385 | 15W 10SW 47S | 20.25.5.LCuR | E385-16 | E 20 25 5 Cu N L R | |
| 27.31.4.LCu | 383 | 27 31 4 Cu L | - | 27.31.4.LCu | - | - | 15W | 27.31.4.LCuR | E(383-16) | E 27 31 4 Cu L R | |
| Nickel Grades | Ni 41 Cu | NiFeCr-1 | SNi 8055 | - | Ni 41 Cu | Ni 41 Cu | EQNiFeCr-1 | 50SW 69S | - | - | - |
| Ni 53 | NiCrCoMo-1 | SNi 6617 | 2.4663 | Ni 53 | - | - | - | Ni 53 | ENiCrCoMo-1 | E NiCrCoMo-1 | |
| Ni 54 | NiCrMo-10 | SNi 6022 | 2.4602 | Ni 54 | - | - | - | Ni 54 | ENiCrMo-10 | ENiCrMo-10 | |
| Ni 55 | NiCrMo-14 | SNi 6686 | - | Ni 55 | - | - | - | - | - | - | |
| Ni 56 | NiCrMo-4 | SNi 6276 | 2.4819 | Ni 56 | - | - | - | Ni 56 | ENiCrMo-4 | ENiCrMo-4 | |
| Ni 59 | NiCrMo-13 | SNi 6059 | 2.4605 | Ni 59 | - | - | - | Ni 59 | ENiCrMo-13 | ENiCrMo-13 | |
| Ni 60 | NiCrMo-3 | SNi 6625 | 2.4856 | Ni 60 | Ni 60 | EQNiCrMo-3 | 50SW 69S | Ni 60 | ENiCrMo-3 | ENiCrMo-3 | |
| Ni 68 HP | NiCrFe-7 | SNi 6052 | 2.4627 | Ni 68 HP | Ni 69HP | EQNiCrFe-14 | - | Ni 69 | ENiCrFe-7 | ENiCrFe-7 | |
| Ni 72 HP | NiCr-3 | SNi 6082 | 2.4807 | Ni 72 HP | Ni 72 HP | EQNiCr-3 | 50SW 69S | Ni 71 | ENiCrFe-3 | ENiCrFe-3 | |
